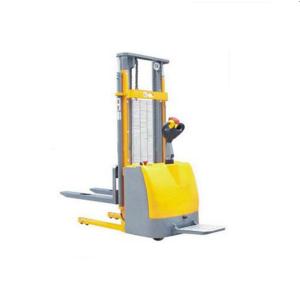

Name: Electric Pallet Stacker Have High Quality
Brand: chinacoal
Price: 1 USD

Place of Origin : China

Brand Name : chinacoal

Certification : ISO9001,CE

Packaging Details : seaworthy export carton

Delivery Time : 7 days for ready goods

Payment Terms : TT,LC,Paypal,Western Union

Supply Ability : 3000 sets/month

MOQ : 1set

Contact Now

Product introduction

1).Use the circular arc camber modeling

2). Good stability and mobility, can also walk in the concave-convex road surface freely

3). According to man-machine engineering design operating system

4). Use the advanced separate excitation control system

5) The main electrical element, hydraulic pump and so on apply with the international first-class technology

Main parameter

SPECIFICATIONS:

Model Parameters	CTQ	10/16,15/16,20/16	10/20,15/20,20/20	10/25,15/25,20/25	10/30,15/30
Drive unit	/	Electric
Load Capacity	Kg	1000,1500,2000	1000,1500,2000	1000,1500,2000	1000,1500
Load center	Q,mm	550
Mast torm	/	Single door frame /Single tank		Two-door frame / Two-tank
Front type dimensions	mm	Φ80*60
Rear type dimensions	mm	Φ130*55
Traction wheel	mm	Φ250*80
Lift height	H2,mm	1600	2000	2500	3000
Forks clearance from the ground	H5,mm	80--90
Extended height	H3,mm	2080	2500	3000	3500
Closed height	H1,mm	2080	1580	1850	2080
Fork dimensions	L3,mm	115016050
Total length	L1,L2 mm	2070,2300
Total width	B,mm	815
Maximum forks width	B1,mm	680
Turming radius(Open pedal)	R1 mm	1600
Truck weight(without battery)	Kg	780	880	930	980
Battery charger	/	AC220V/50Hz/DC24V/40A
