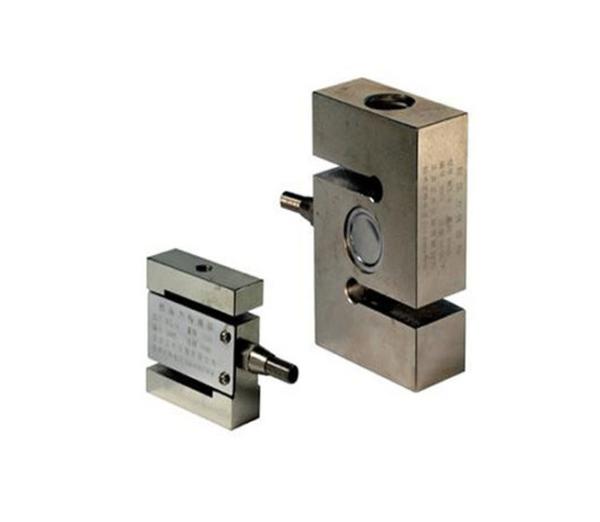

Name: S series dual pressure sensors
Brand: chinacoal
Price: 1 USD

Place of Origin : China

Brand Name : chinacoal

Certification : ISO9001,CE

Packaging Details : seaworthy export carton

Delivery Time : 7 days for ready goods

Payment Terms : TT,LC,Paypal,Western Union

Supply Ability : 3000 sets/month

MOQ : 1set

Contact Now

Product Introduction:

High comprehensive performance, with good natural linear and bias loading resisting, lateral resistance and good

compressive symmetry. With overload protection.

Mainly use in mechanical and electronic scales, hopper scales, electronic belt scale, crane scale.

Main Parameter:

Measurement range	0.5~20t
Sensitivity	2.00±0.010 3.00±0.01
Nonlinearity/hysteresis/repeatability	±0.02FS%
output signal	10(DC/AC) V
Screen	±0.02FS%
Zero output	±1.00FS%
Insulation resistance	≥ 5000MΩ
Material	Alloy steel .stainless steel
operating temperature range	-20~60°c
Resistance output	350±3Ω
Resistance input	385±10Ω
